The Modified sine versus pure sine inverters used has a big impact on a solar power generator that is now available on the market. The terms “pure sine wave” and “modified sine wave” are taken into consideration while evaluating the investment in a solar-powered generator. The distinction is not as straightforward as the terminology, and it has a direct bearing on the devices that can be connected as well as how well the battery is used.
With my experience working on DIY solar installations, off-grid inverters, and portable power stations, I have learned the value of the three gadgets I have plugged in to assist me with project work. These were originally purchased to support my off-grid portable electronics, but they are now also supporting my off-grid lifestyle. It is time for me to prove, after ten years of experience, that off-grid inverters and portable power plants can not provide me with the long-term benefits of off-grid gadgets. The promise given in the market regarding my off-grid equipment has been validated by the ease of life I am going to achieve.
What a solar power generator’s inverter does
A solar power generator’s energy is stored as direct current in a battery, usually utilizing LiFePO₄ or NMC packs. Alternating current (AC) supplied at a set voltage and frequency is what household appliances are made to run on. Thus, in real time, the inverter converts the direct current (DC) to AC. Additionally, it controls motor-driven surges, smoothes AC voltage under fluctuating loads, and handles small harmonics that delicate electronics can either accept or reject. When the waveform is clear and sinusoidal, the majority of contemporary electronics will act as though they are powered by the grid. Some devices may perform less efficiently, run hotter, buzz noisily, charge slowly, or shut down entirely when the waveform is stepped or choppy.
An explanation of a pure sine wave inverter.
Pure sine inverters generate AC waveforms that are nearly identical to utility power. The voltage crosses 0 as a sinusoid would, reaching its maximum and minimum points smoothly. Good inverters have low overall harmonic distortion and maintain a steady frequency and voltage. Consequently, laptop power supplies operate silently, brushless motors spin smoothly, audio amplifiers operate quietly, flicker-less LED drivers function correctly, and induction devices behave normally.
The place where pure sine glows
Pure sine has been found to be the safest default for a mixed set of loads in the field. The system was silent, cool, and free of unidentified shutdowns throughout a week-long off-grid test that powered a router, a workstation laptop, a color-accurate display, a CPAP machine, and a small refrigerator. These results are predicted, as is the case with the majority of off-grid systems. Clean AC is the ideal operating condition for devices with power factor correction, variable-speed motors, or complex timing circuits.
The trade-offs must take into account
Cost, a tiny efficiency loss on extremely low loads, and a self-consumption gap were the pure sine inverters’ previous drawbacks. These holes have been filled by features like sleep or eco modes and enhanced idle instruction draws in contemporary designs. The majority of the remaining trade-off relates to quality control; using inverters or all-in-one solar generators that include protection features, surge ratings, and waveform specs is preferable than employing ambiguous marketing.

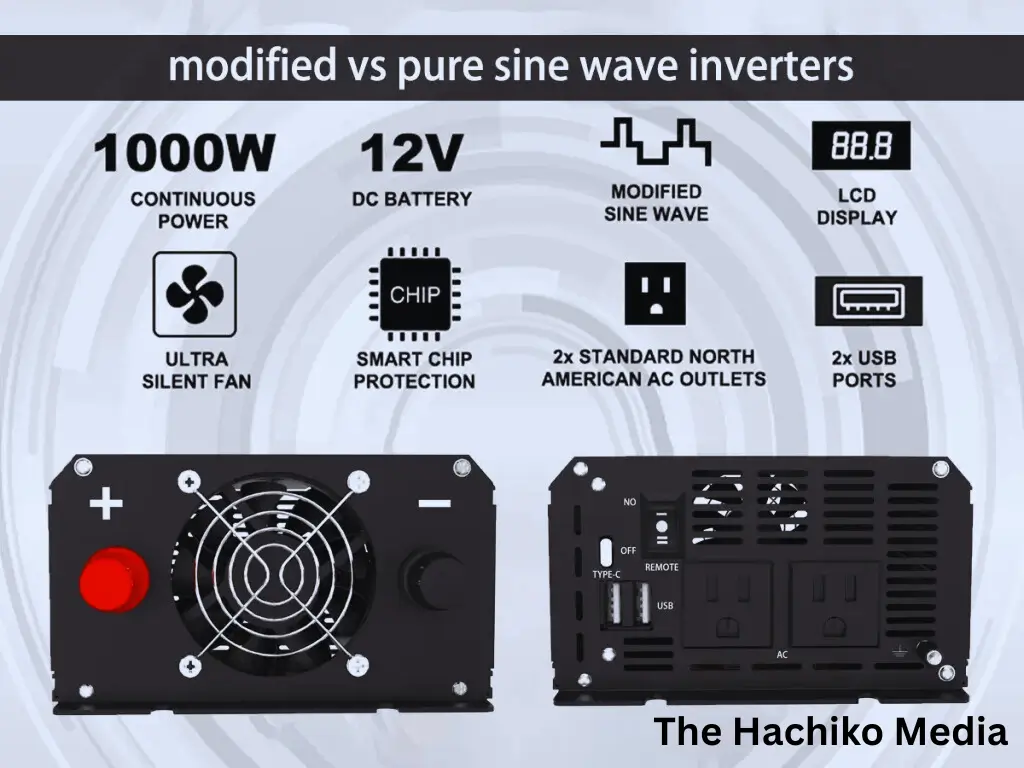

An explanation of modified sine wave inverters
An inverter that produces stepped approximations of alternating current (AC) and is categorized as modified sine wave outputs. Instead of fluctuating smoothly, the voltage in these inverters moves jerkily in striated voltage plateaus. This would be acceptable for the majority of simple devices, but anything that anticipates a pure sine wave could malfunction since the stepped output creates undesired high-frequency noise.
It is possible to use modified sine waves.
Simple electric kettles, solar power generators that use resistive incandescent lights, heaters without sophisticated electronics, and certain battery chargers can all use a modified sine inverter. The cost savings can be alluring for very limited, occasional, and frugal use where only a few simple devices need to be operated. During my presentations in the classroom, the filament bulbs and tiny soldering irons I used ran smoothly on modified sine.
Issues that you will notice
Issues may begin to appear when variable speed fans, AC motors, switch-mode power sources, or audio equipment are attached. Microwaves and refrigerators can take longer than usual to operate, which gradually depletes stored energy. In fact, some computers might run hotter. The behavior of LED bulbs varies; some may flicker or burst, while others may buzz or hiss. I have come across power tool chargers that display errors and CPAP equipment that will not turn on. Even while none of these issues are very serious when taken separately, when taken as a whole, they all compromise a solar power generator’s dependability and credibility.
What actually changes with regard to your appliances?
Appliances that use pure sine receive the power type for which they were intended. Precision timing circuits preserve accuracy, starting motor currents are controlled predictably, and excessive noise is not a problem for radio and audio equipment. Every internal power supply must smooth out the steps while using modified sine. This function is correctly carried out by some. Others act impulsively, run hot, or behave unpredictablely. Frequently, microwaves do not provide as much actual cooking power as their ratings indicate. When the compressor surges, refrigerators may not start and are frequently noisy. While some routers and modems operate correctly, I have had a few unplanned reboots under various loads.
A pure sine inverter is a necessity rather than a need if you rely on broadcast and recording equipment, medical devices, gaming computers with powerful GPUs, precision tools with programmable variable speed controls, and programmable test equipment. This power condition modification streamlines the process in addition to aiding in troubleshooting.
Battery life, runtime, and efficiency
There are other metrics that can be used to evaluate a generator besides its peak wattage. The real number of hours of productive work that can be accomplished per charge can also be used to evaluate it. For instance, inverters use some electricity simply to stay in standby mode. Nowadays, a lot of high-quality pure sine inverters have sleep modes that minimize idle consumption by waking up promptly when a load is detected. Although some modified sine inverter devices promise to be more efficient, this is not always the case in practice because the jagged waveform renders improved operation inefficient.
Reliability and ownership costs
The initial cost is undoubtedly significant when buying equipment, but the overall cost of ownership is far more crucial. The cheaper cost of an inverter is accompanied by slower device operation, increased noise, and decreased charging efficiency. Such an inverter is more costly over time. Due to an increase in customer satisfaction and a decrease in support inquiries, the majority of trustworthy portable solar power generators have switched to pure sine inverters. Modified sine is still present in low-end kits and basic inverters, though. That decision might make sense if you are trying to stick to a single resistive load budget. In most cases, it does not for a general-purpose solar power generator.
Noise, safety, and conformity
Safety aspects are essential and must be followed. For safety, look for unambiguous protection specifications, such as ground fault, short circuit, over-voltage, under-voltage, over-current, and over-temperature protection. The electromagnetic noise of an inverter can also be influenced by its energy efficiency. For those who use audio interfaces, diagnostic tools, or ham radio, this is crucial. While some inverters float, others tie neutral to earth internally; your solar power generator should provide protected plugs and make this explicit. Although the type of waveform by itself does not ensure safety, designs that are advanced enough to produce pure sine waves typically have superior overall engineering and more lucid compliance labeling.
How to Choose the Right Size Inverter for Your Solar Power Generator
An essential component of the inverter’s operation is the output waveform. The continuous rating of the inverter needs to be more than the total of your usual simultaneous loads. The surge rating needs to be sufficient for the load’s maximum initial current. During startup, loads such compressor refrigerators, well pumps, air conditioners, air compressors, and certain power tools show a noticeable increase in current. Make sure your inverter is sized for at least 1.2 times the surge rating if your refrigerator has a 150 watt running and 600 watt surge rating. Maintaining headroom is beneficial and safeguards the system as a whole. It increases voltage and lessens the strain on appliances and the inverter.
When is it OK to utilize modified sine?
A modified sine is most effective in a particular use situation. A inexpensive modified sine unit is helpful when you need to put together a basic emergency pack that includes a simple kettle for boiling water, two incandescent light bulbs, and basic batteries with good charge cycles. It is helpful for getting by for a little time if it is to be used as a stand-in while a more sophisticated unit is being developed. Just make sure the device is appropriately labeled, and remember to test any devices you wish to utilize before connecting them. Because pure sine is so convenient and easy to use, it is better to pay the price for anything other than this use case.
Recommended application in real life
Use a solar power generator with pure sine output and a strong inverter with a decent surge capacity rating and low idle draw for home backup that is used for internet, lights, refrigeration, and device charging. Pure sine kept the refrigerator’s compressor cycles quiet during a multi-day power outage at home, the fiber router stayed steady, and the work laptops charged at full power without heating up or making a slight squeak. Because devices were not using excessive energy as a result of counteracting harmonics, runtime matched the calculations.
A pure sine inverter removes audio hiss, display flicker, and inconsistent USB-C charger behavior for mobile creators and students working from a van or dorm. These inverters are essential since they do not have ground noise in the interface, which is something I would not try on modified sine. I used a pure sine inverter to record voiceover in a parked camper.
Pure sine inverters are necessary for light trades, crafts, and hobbies because, in their absence, variable-speed equipment and various battery charger tools would experience error codes and stutters throughout work sessions. Technically speaking, drone, camera, and e-bike battery chargers are quite delicate. During charging, clean waveforms maintain precise and moderate temperatures.
In summary, what kind of fuel should your solar generator run on?
A pure sine wave inverter will work best for a solar power generator that needs to supply electricity to a variety of contemporary gadgets. They shield delicate electronics, produce no noise or heat, and frequently estimate longer real-world run times through effective operation. In a mixed-use setting without a stringent load or an extremely limited budget, a modified sine wave inverter will not function. limited budgets without strict control over what is plugged in and used, as well as concessions that the majority of users will regret. Pure and free yard without remorse for clockwork or modification.
